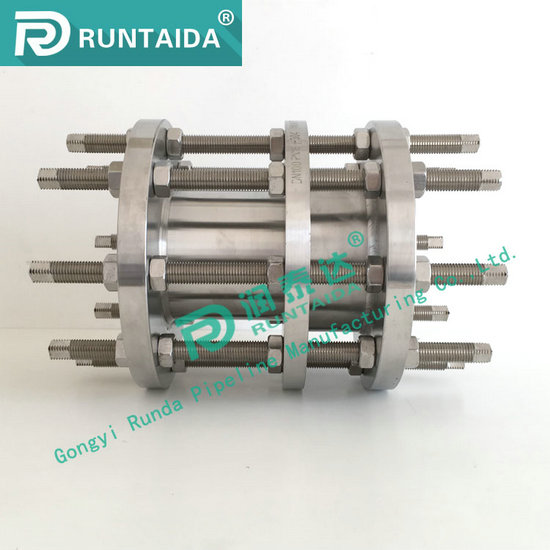

VSSJAF C2F stainless steel power delivery dismantling joint
- 品牌 runtaida
- 型號 VSSJAF
Introduction of stainless steel dismantling joint
Double flange loose sleeve power delivery joint is consist of flange loose sleeve expansion joint, a connection short pipe, power delivery screw and other components, it can reduce the pressure ,thrust and blind plate force of the connector, it can also compensate the installaiton error of pipe, but double dlange loose sleeve powder delivery joint can't absorb the axial displacement.
Model introduction of stainless steel dismantling joint
The model of detachable double flange power delivery joint is VSSJAFC (CC2F), it's suitable for the pipeline which both sides are connected with the flange, when installing, adjust the installation length of the two ends of product and flange, tighten the gland bolts diagonally in trun, make them a whole, and retain a certain amount of displacement, convenient for adjusting according to the size of site in the installation and maintenance, the axial thrust can be transmitted to the whole pipeline at work.
Function of stainless steel dismantling joint
Double flange loose sleeve power delivery joint is mainly used for the loose sleeve connection of pump, valve and other accessories
| Technical parameters of stainless steel dismantling joint | |||
| No | Name | Quantity | Material |
| 1 | Valve body | 1 | QT450-10,Q235A, 304, 316 etc. |
| 2 | Gasket | 1 | NBR |
| 3 | follower | 1 | QT450-10,Q235A, 304, 316 etc. |
| 4 | limited short pipe | 1 | Q235A, 304, 316 etc. |
| 5 | stud | n | Q235A, 35#, 304, 316 etc. |
| 6 | nut | Tn | Q235A, 20#, 304, 316 etc. |
| Main connecting dimension of stainless steel dismantling joint | |||||||||||
| Nominal diameter(DN) | External diameter(DW) | Shape dimension | Flange connection size | ||||||||
| 0.6 Mpa | 1.0Mpa | ||||||||||
| L | L1 | D | D1 | N-Th. | b | D | D1 | n-Th. | b | ||
| 65 | 76 | 200 | 40 | 160 | 130 | 4-M12 | 16 | 185 | 145 | 4-M16 | 20 |
| 80 | 89 | 190 | 150 | 4-M16 | 18 | 200 | 160 | 8-M16 | 22 | ||
| 100 | 114 | 210 | 170 | 18 | 220 | 180 | 24 | ||||
| 125 | 140 | 240 | 200 | 8-M16 | 20 | 250 | 210 | 26 | |||
| 150 | 168 | 265 | 225 | 20 | 285 | 240 | 8-M20 | 26 | |||
| 200 | 219 | 320 | 280 | 22 | 340 | 295 | 28 | ||||
| 250 | 273 | 375 | 335 | 12-M16 | 24 | 395 | 350 | 12-M20 | 28 | ||
| 300 | 325 | 220 | 50 | 440 | 395 | 12-M20 | 24 | 445 | 400 | 12-M20 | 28 |
| 350 | 377 | 490 | 445 | 26 | 505 | 460 | 16-M20 | 30 | |||
| 400 | 426 | 540 | 495 | 16-M20 | 28 | 565 | 515 | 16-M24 | 32 | ||
| 450 | 480 | 595 | 550 | 28 | 615 | 565 | 20-M24 | 32 | |||
| 500 | 530 | 645 | 600 | 20-M20 | 30 | 670 | 620 | 20-M24 | 34 | ||
| 600 | 630 | 240 | 755 | 705 | 20-M24 | 30 | 780 | 725 | 20-M27 | 36 | |
| 700 | 720 | 860 | 810 | 24-M24 | 32 | 895 | 840 | 24-M27 | 40 | ||
| 800 | 820 | 350 | 60 | 975 | 920 | 24-M27 | 34 | 1015 | 950 | 24-M30 | 44 |
| 900 | 920 | 1075 | 1020 | 24-M27 | 36 | 1115 | 1050 | 28-M30 | 46 | ||
| 1000 | 1020 | 1175 | 1120 | 28-M27 | 36 | 1230 | 1160 | 28-M33 | 50 | ||
| 1200 | 1220 | 370 | 1405 | 1340 | 32-M30 | 40 | 1455 | 1380 | 32-M36 | 56 | |
| 1400 | 1420 | 1630 | 1560 | 36-M33 | 44 | 1675 | 1590 | 36-M39 | 62 | ||
| 1600 | 1620 | 380 | 1830 | 1760 | 40-M33 | 48 | 1915 | 1820 | 40-M45 | 68 | |
| 1800 | 1820 | 2045 | 1970 | 44-M36 | 50 | 2115 | 2020 | 44-M45 | 70 | ||
| 2000 | 2020 | 400 | 2265 | 2180 | 48-M39 | 54 | 2325 | 2230 | 48-M45 | 74 | |
| 2200 | 2220 | 2475 | 2390 | 52-M39 | 60 | 2550 | 2440 | 52-M52 | 80 | ||
| 2400 | 2420 | 2685 | 2600 | 56-M39 | 62 | 2760 | 2650 | 56-M52 | 82 | ||
| 2600 | 2620 | 450 | 80 | 2905 | 2810 | 60-M45 | 64 | 2960 | 2850 | 60-M52 | 88 |
| 2800 | 2820 | 3115 | 3020 | 64-M45 | 68 | 3180 | 3070 | 64-M52 | 94 | ||
| 3000 | 3020 | 3315 | 3220 | 68-M45 | 70 | 3405 | 3290 | 68-M56 | 100 | ||
| 3200 | 3220 | 3525 | 3430 | 72-M45 | 76 | ||||||
Packing&Shipping of stainless steel dismantling joint
1.Plastic film packing,then fixed into standard export wooden case
2.FedEx/DHL/UPS/TNT for sample.Door-to-Door
3.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving
4.Customers specified freight forworders or negotiable shipping methods!
5.Delivery Time: a.in stock:immediately 2.sample:2 days 3.OEM/ODM:3-15 DAYS
